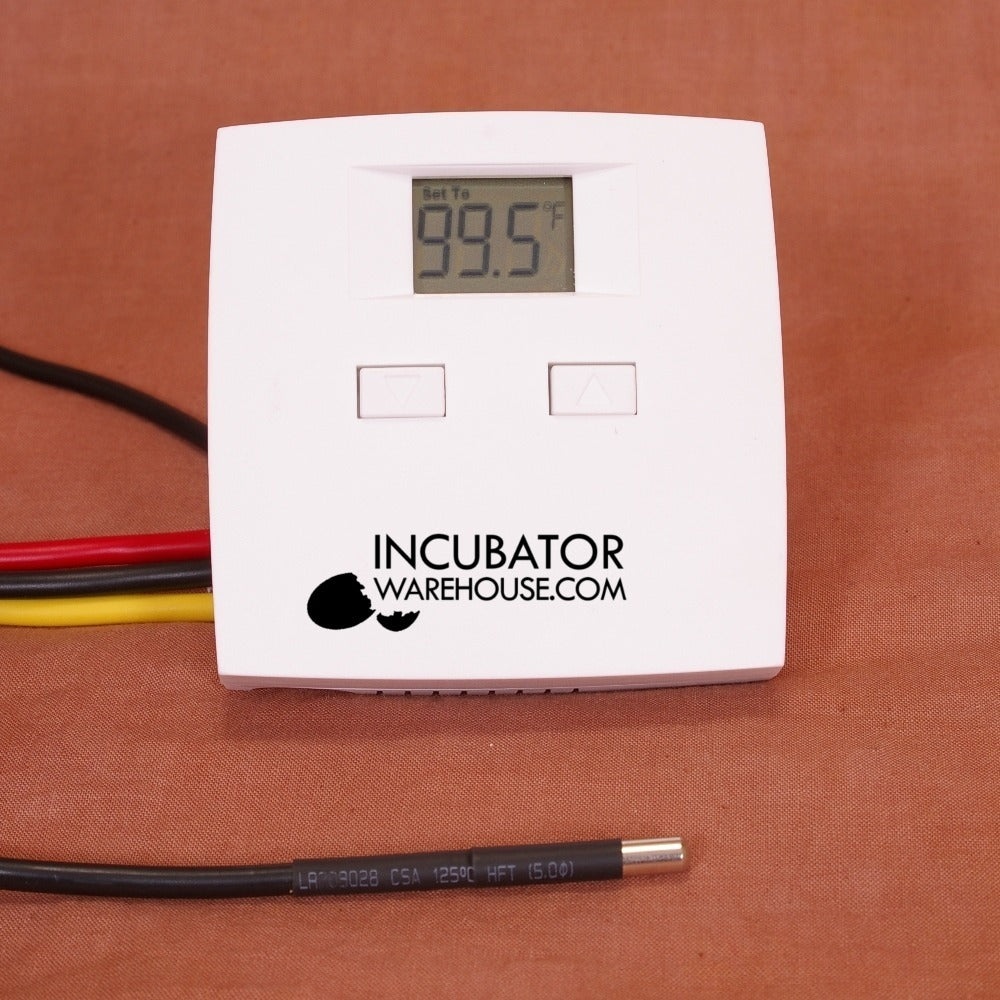

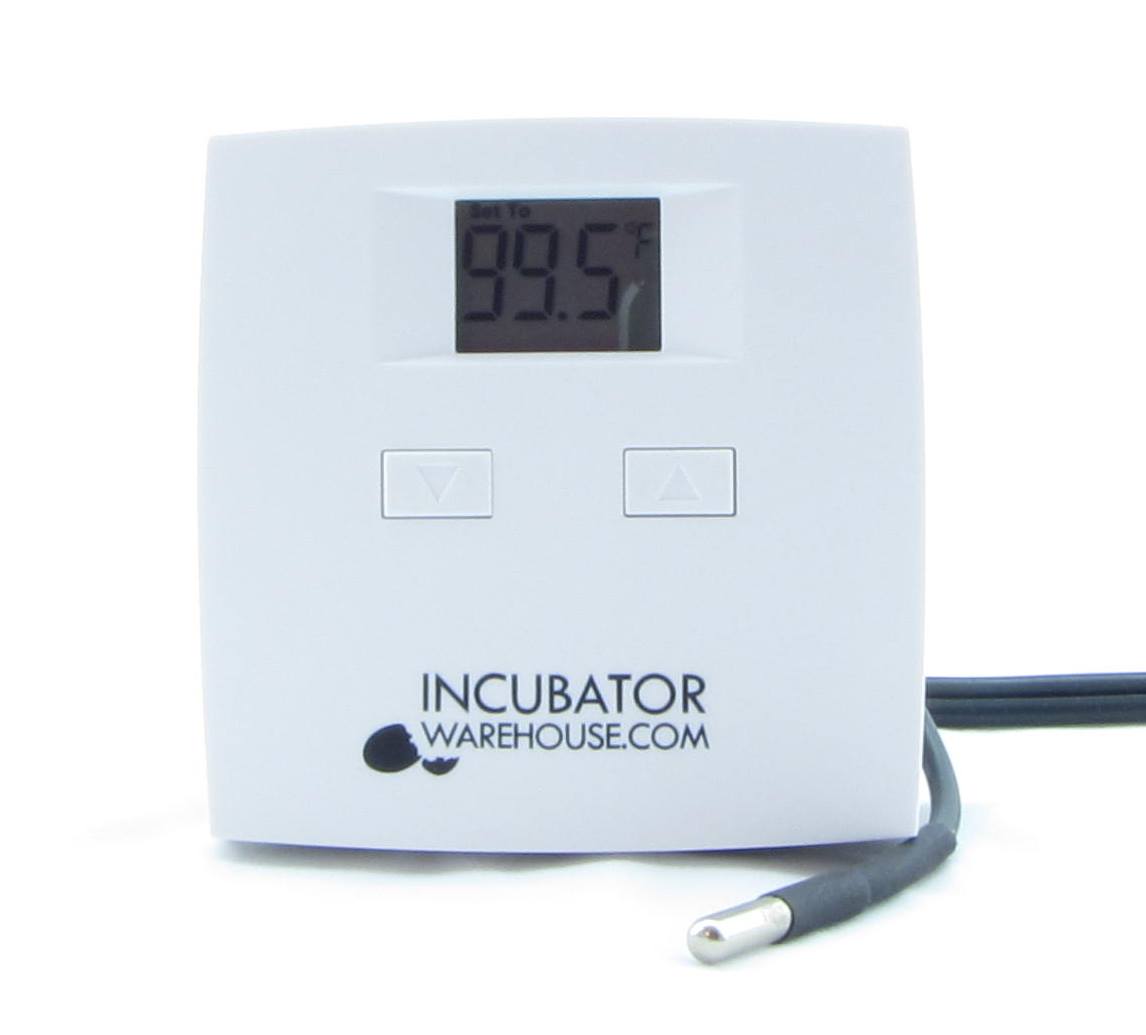

Incubator Warehouse's Digital Electronic Egg Incubator Thermostat
This thermostat is very simple to use. Just press the up arrow to set the temperature (in 0.1 degree increments). There is a flame indicator on the screen that shows when the heater is operating. The unit has an 18 inch remote sensor that is placed inside the incubator. The white thermostat case is then mounted on the outside of the incubator. Finally you can measure the temperature right next to your eggs, not the air at the top of the incubator.
- This can be set to read in Celsius or Fahrenheit
- Comes preset to 99.5 (this means that if you lose power the thermostat will come back on set to 99.5) - Preset to 37.5 in Celsius mode
- Thermostat set point can be adjusted to any temperature between 41 - 113 degrees Fahrenheit
- Digital readout displays temperature to the tenth of a degree (examples: 98.0, 99.5)
- If the temperature goes over 99.9, it reads: 00.1, 00.2, 00.3, etc
- Designed specifically for incubators, great for small incubators AND cabinet incubators (can switch heating elements up to 300 Watts)
- Remote Temperature Sensor (18 inches long)
- Select your voltage above in the drop down box (110V AC OR 220/240V AC). 110V AC is for North America and a small number of other countries. 220/240V AC is for most places outside of North America.
- Temperature Switching Differential = 0.2 degrees Fahrenheit. This means if the thermostat is set to 99.5 the thermostat will turn the heat on when the thermostat sensor reads below 99.3 and turn off when the sensor reads above 99.7.
- NOTE: It is normal for the thermostat to turn the heater off and still have the air temperature increase a little bit. This happens because as the power to the heater turns off, the heater is still hot and will heat the air around it. The same is true when the heater turns back on: the temperature may decrease a little more as the heater gets back up to temperature. The amount this happens will depend on the thermal mass of your heating element and the amount of circulation in your incubator. Keep in mind that the air temperature may vary without a negative impact to the eggs if the variation is rapid enough to not allow the egg to heat or cool more than it should. As long as the up and down cycle is relatively small, is less than a few minutes, and the average air temperature is at your target temperature, the temperature inside your egg (which is what really matters) will be just fine! This is true with any incubator and egg configuration.
- Calibration Enabled. This means that you can calibrate the thermostat to a specific temperature. For example: If you have a thermometer that you trust and the digital thermostat reads a little different, you can calibrate the thermostat to match the trusted thermometer (calibrate in 0.1 degree increments up to +/- 5 degrees)

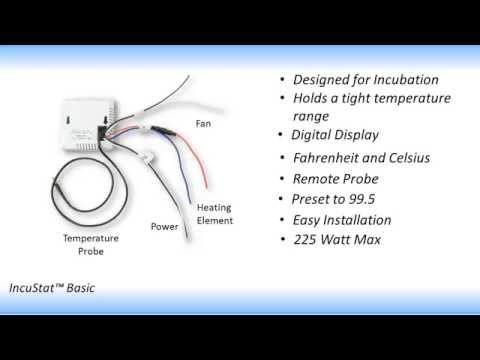

- Wiring and operation instructions included. It also includes instructions for installing an incubator fan, if desired.
- Key lock feature allows you to set the temperature and lock the keys so it cannot be changed without unlocking the keys (keys are locked by pressing both up and down buttons for 5 seconds).
|Country of Origin||China|
|Dimensions||3.5" x 3.5" x 1"|
|Model||IWTR35 110V OR 220V|
|Watts||Up to 1000|
