IncuKit™ XL for Cabinet Incubators
- All-in-one Egg Incubator Control Unit
- For Mid-Size & Cabinet Incubators
- Choose Basic or Advanced thermostat module
- Digital electronic pre-set (99.5 F) thermostat
- Option to use 1 or 2 heater and fan modules (125 watts or 250 watts)
- Integrated heaters with safety thermal switch included
- Large high output axial fan with safety guard
- Mounting hardware & operating instructions included
- IncubatorWarehouse.com's 1 Year Hassle Free Guarantee
- For the IncuKit XL for reptile incubators click here
- Voltage requirement: 110/120VAC Click here to see the 220V International Version.
The IncuKit XL ™ is an all-in-one kit designed to be the heart and brains of a homemade cabinet incubator. It allows you to convert a cabinet-sized enclosure into an incubator! To make your own incubator, you can use anything from an old refrigerator to a custom built cabinet! Simply choose your enclosure and install your IncuKit XL™ unit inside. Pretty cool? Well, actually it's pretty hot and it works very well.
The IncuKit XL™ series has been redesigned to provide you with more options and versatility!
First, select which style of thermostat is best for you:

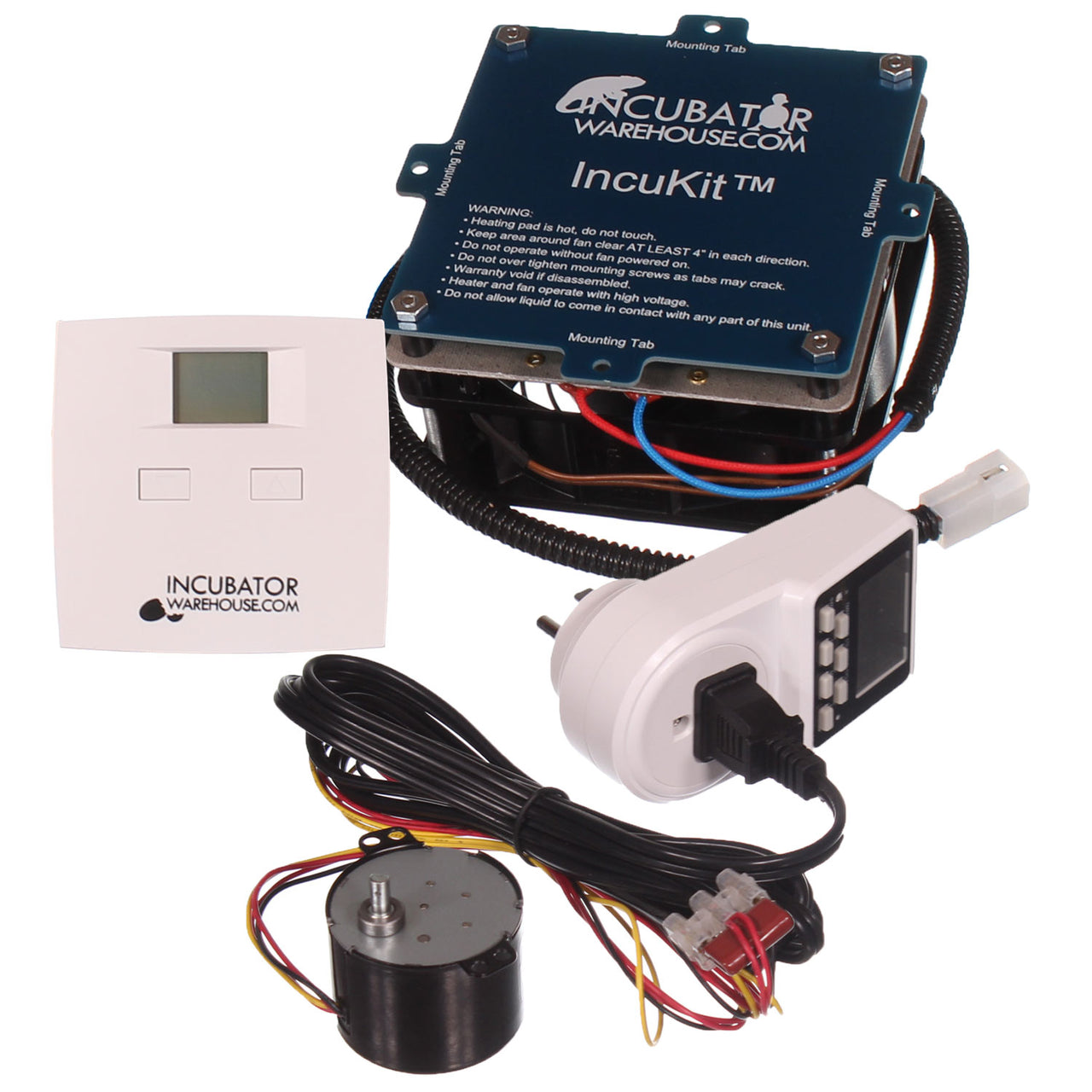

- Basic Thermostat module: This is a standard on/off thermostat. This means that when the temperature hits a certain point, it turns the heater off and then back on full power once the temperature drops below a certain point. It will control the heater. This comes pre-set to 99.5 degrees F.

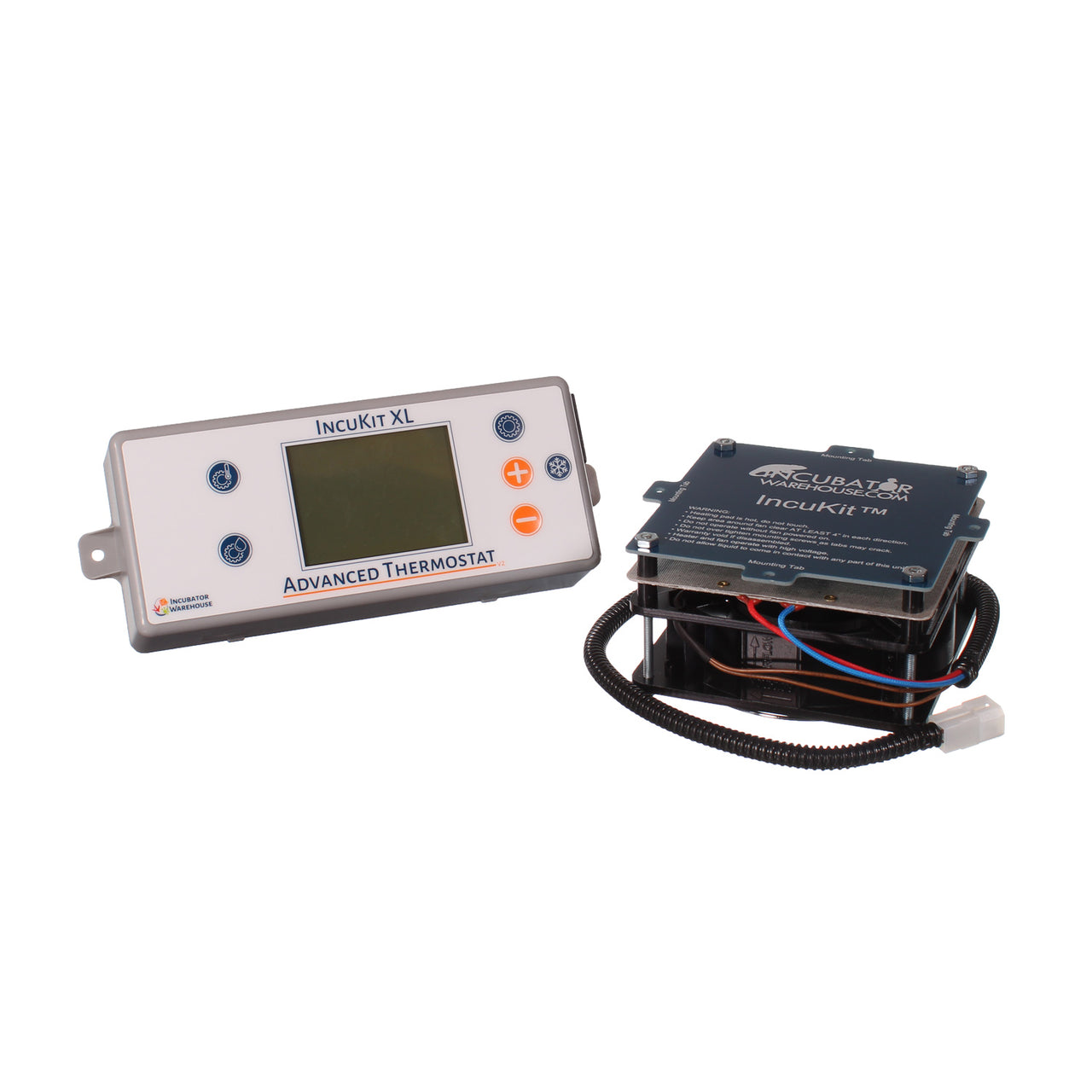

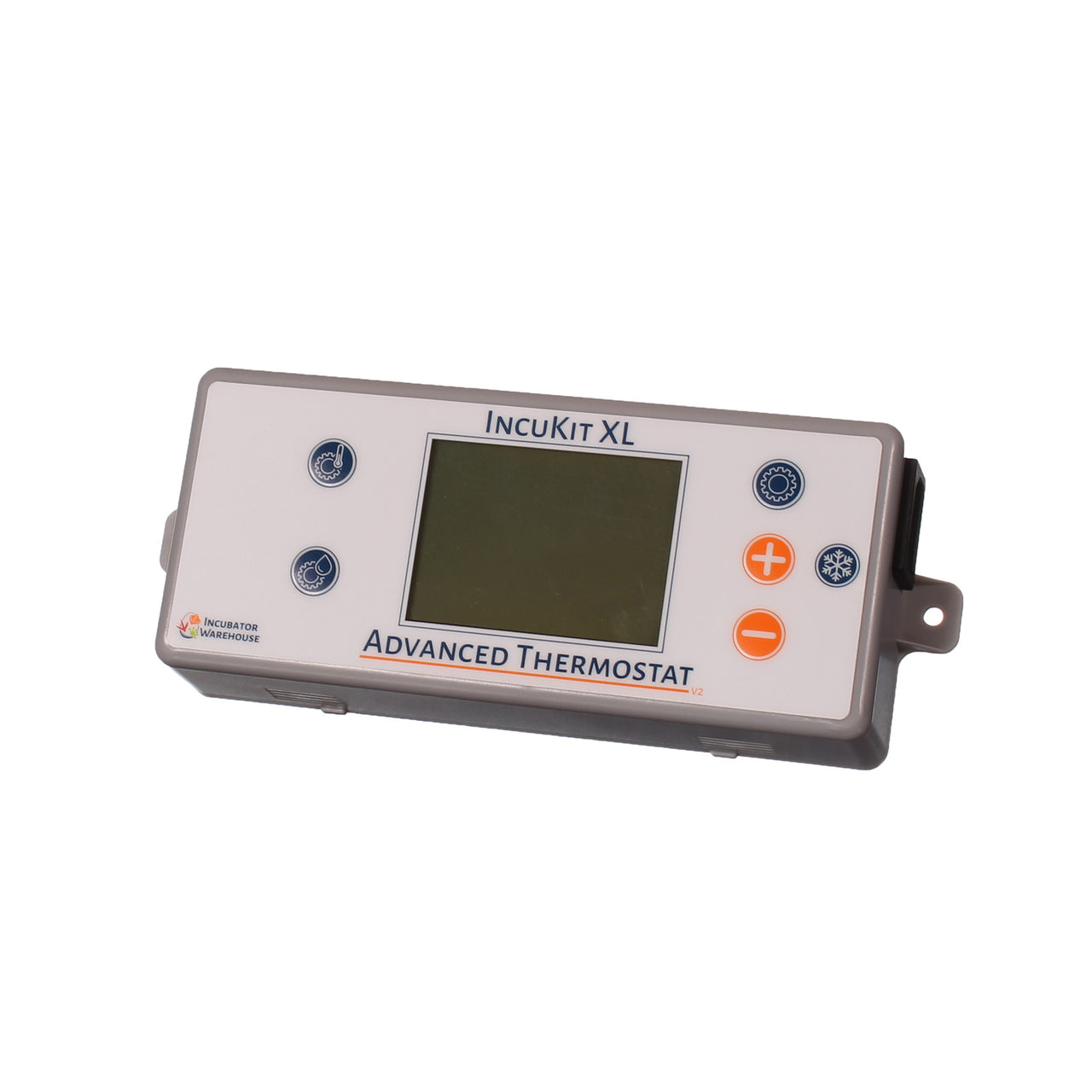

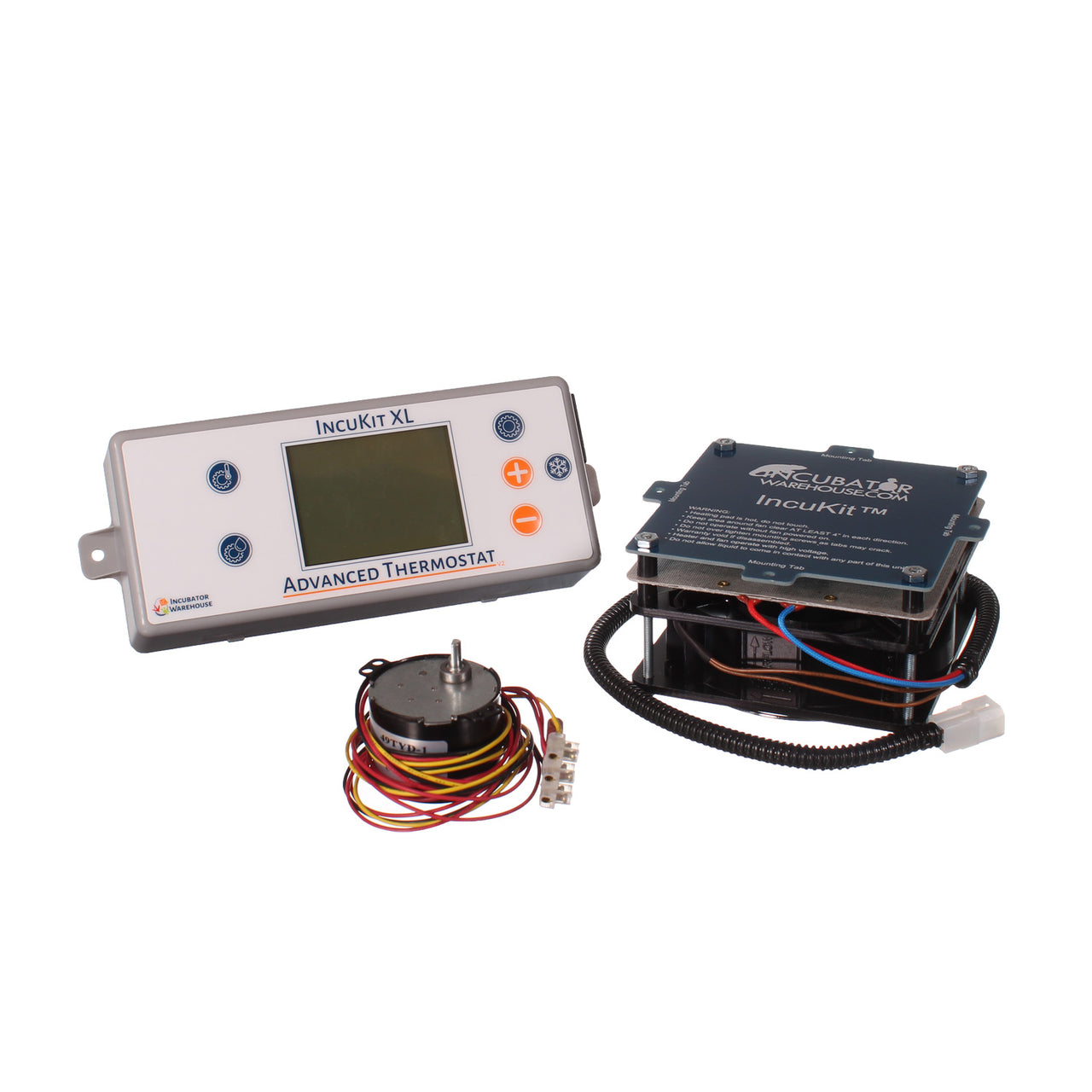

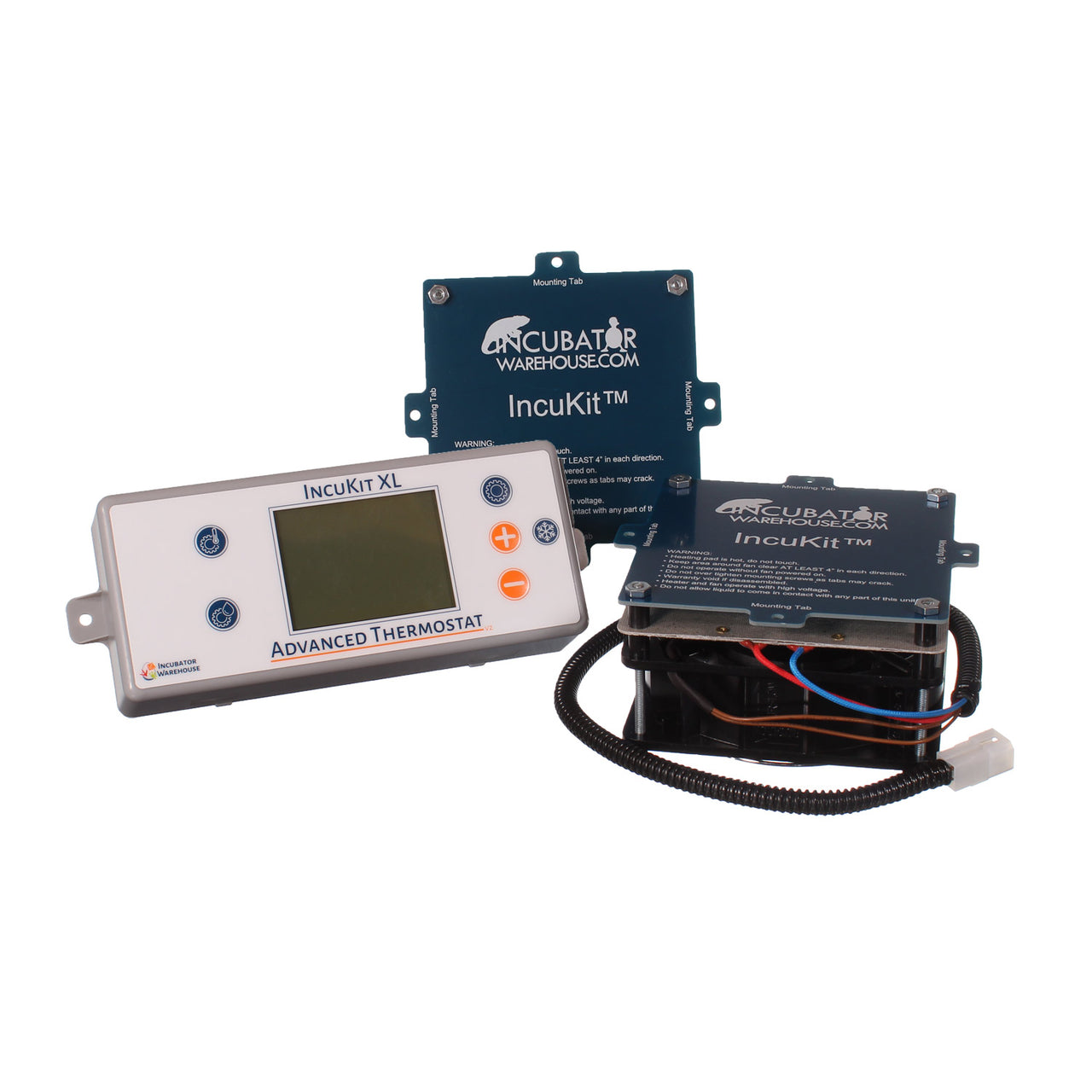

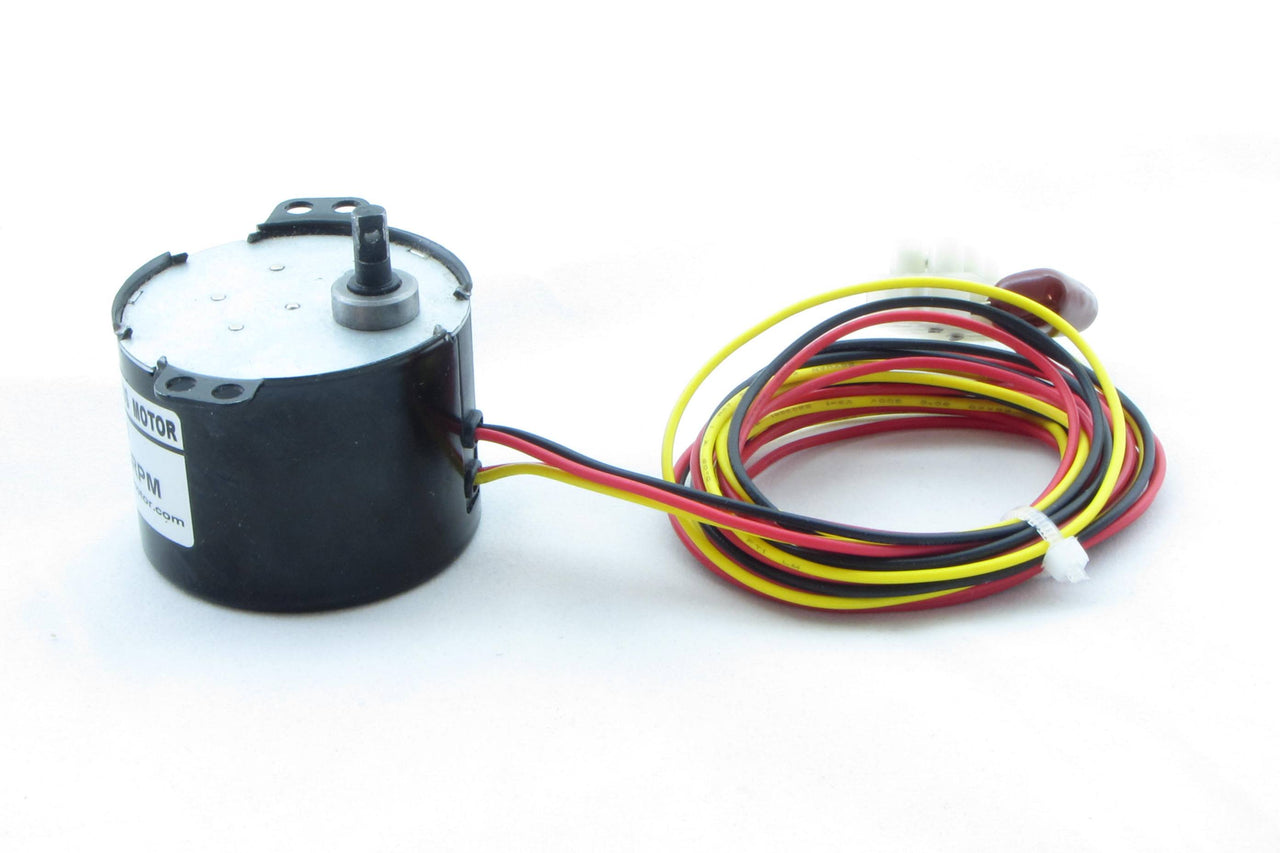

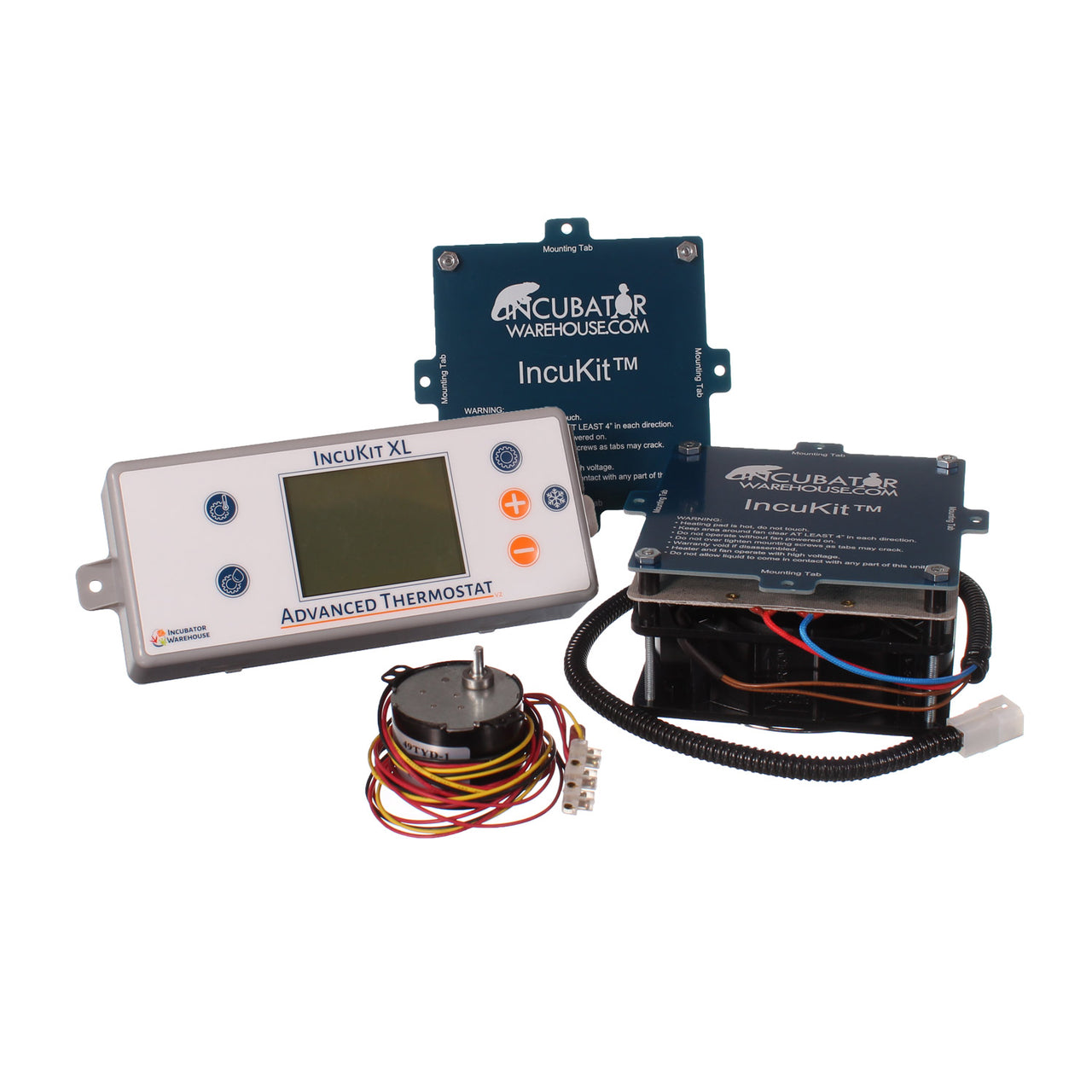

- Advanced Thermostat module: This is a proportional thermostat. As the temperature gets closer to the target temperature, it begins tapering off the power to the heater. This provides more precise control and provides lower temperature variation in the incubator. This unit also has a count-down hatch timer and provides the option to control an egg turner motor, if you choose to use one. This comes pre-set to 99.5 degrees F
Second, select how many heater and fan modules your container will require:
- The number of heater and fan modules will be determined by the size of your container, how well it is insulated and the temperature outside the incubator. The IncuKit XL™ can be configured with one or two heater and fan modules, depending on these factors.

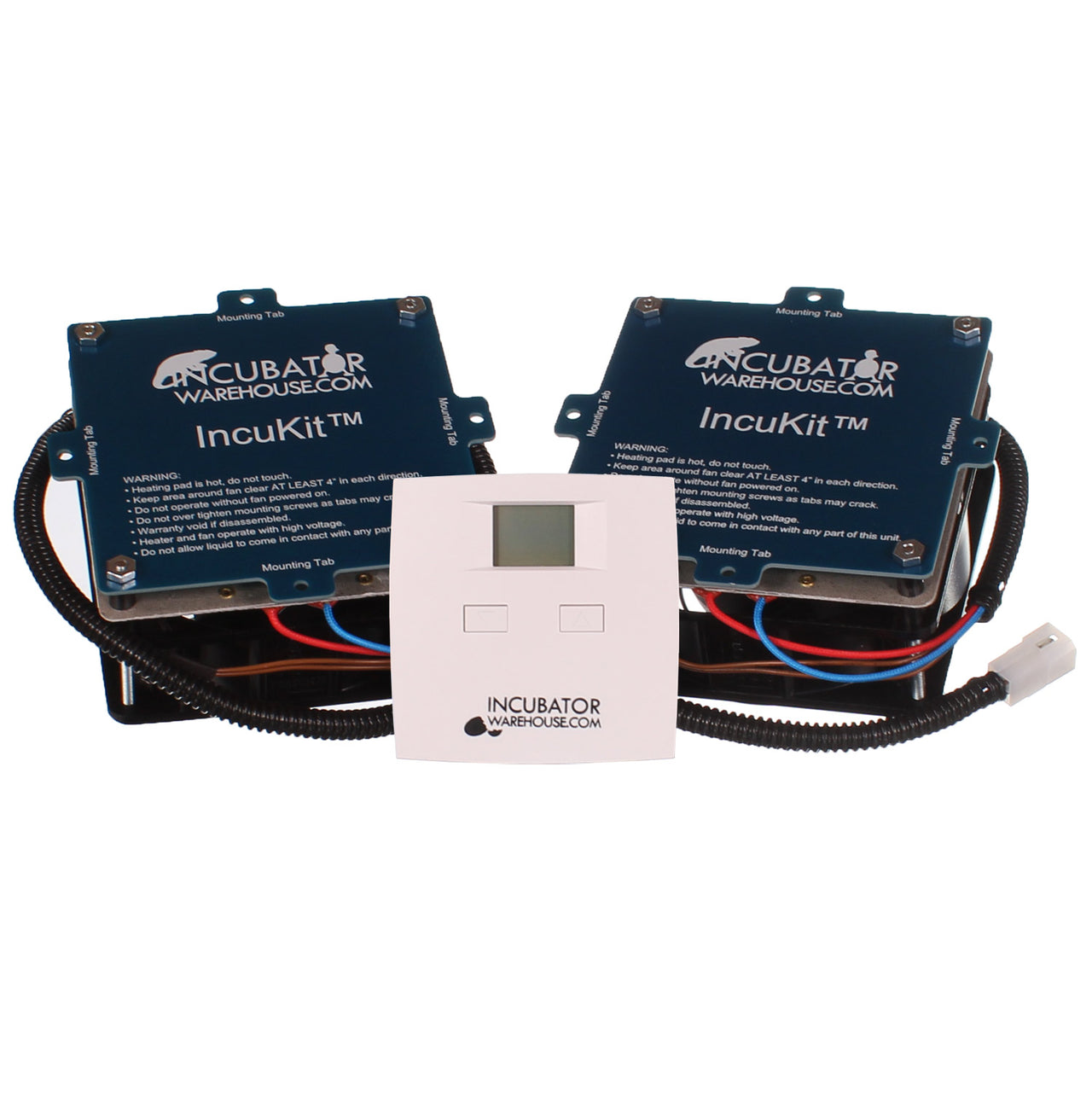

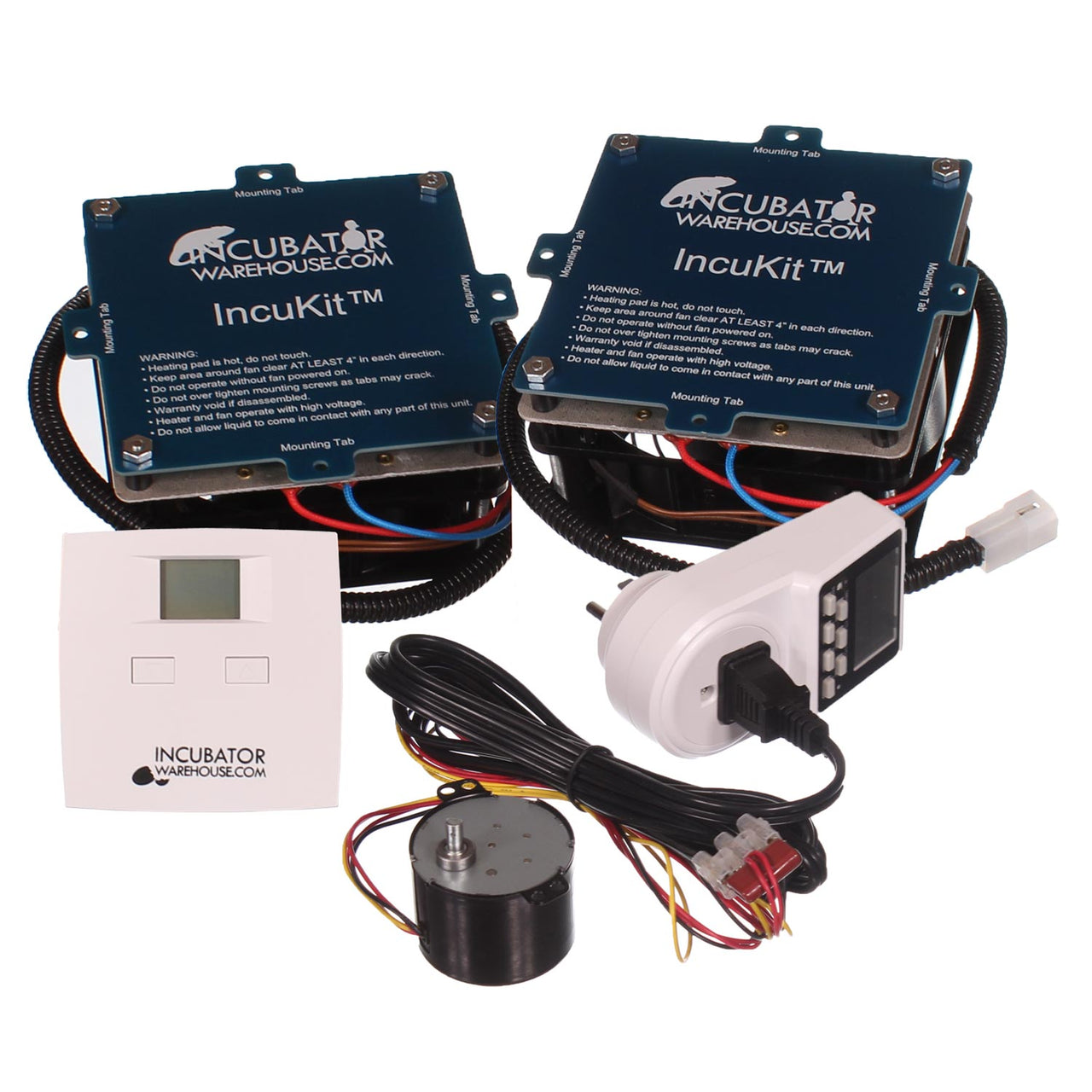

- Each heater and fan module will provide 125 watts of power. For medium size containers this may be all you need. For larger containers, you can add a second module to add an additional 125 watts of power.
- Do determine which option is best for you, a simple light bulb test will help. Get light bulbs that will generate enough heat to easily warm your incubator to at least 100 degrees F. See how many watts are required and that will help you know which option to select.
- The buyer is responsible for determining if this will generate enough heat for your enclosure.
Caution: this is an AC powered device that you will be mounting in your incubator yourself. You must use a great deal of common sense when dealing with electrical devices. Electricity is wonderful but can be very dangerous. Use caution, common sense and if in doubt, ASK AN EXPERT!!!
The IncuKit includes the following:

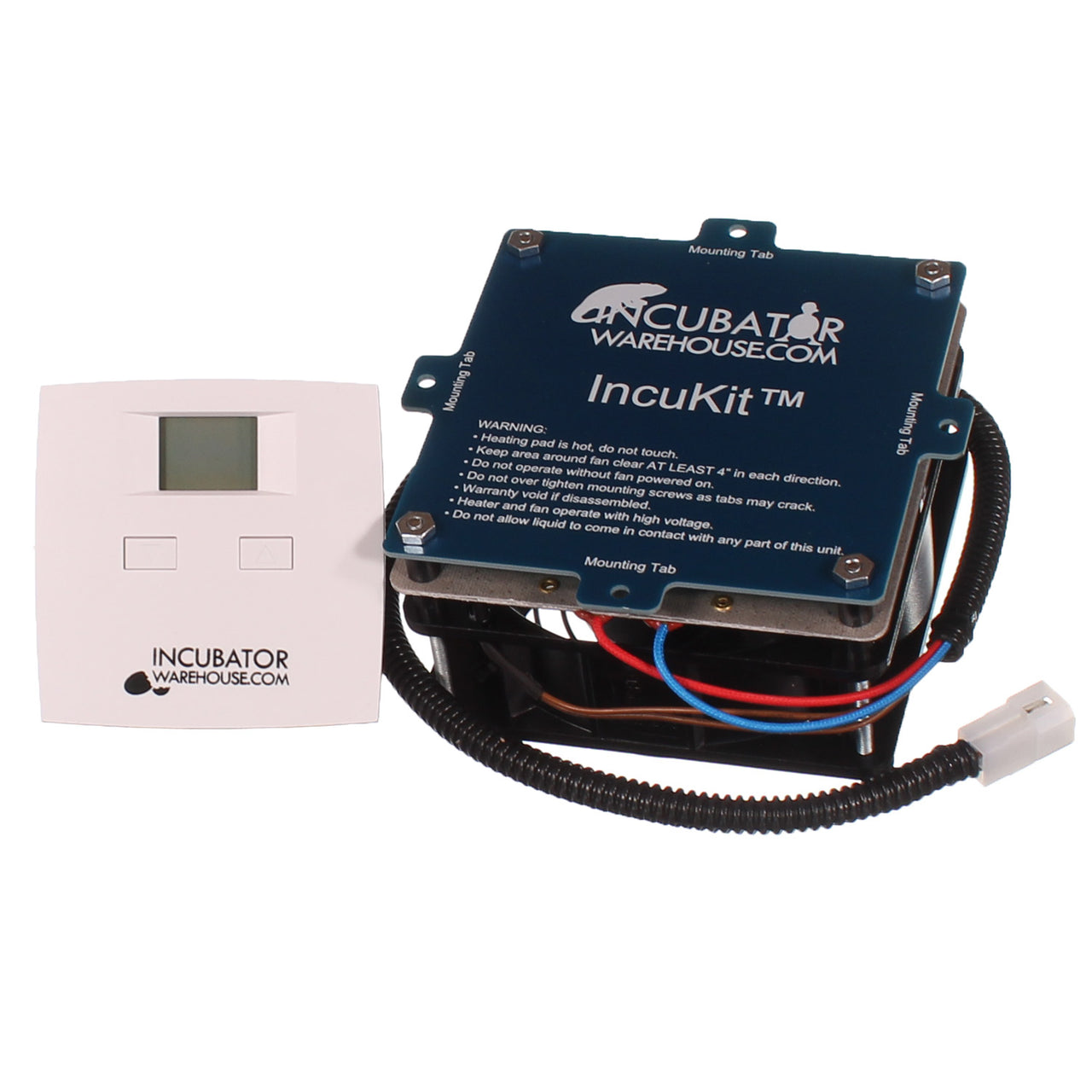

- Electronic Pre-Set thermostat designed specifically for incubators by IncubatorWarehouse.com (see details below)
- Each heater and fan module includes a high-output 120mm AC fan with protective screen, an integrated 125 watt heater with built-in safety thermal switch and mounting plate
- All mounting hardware
- Installation and operating instructions

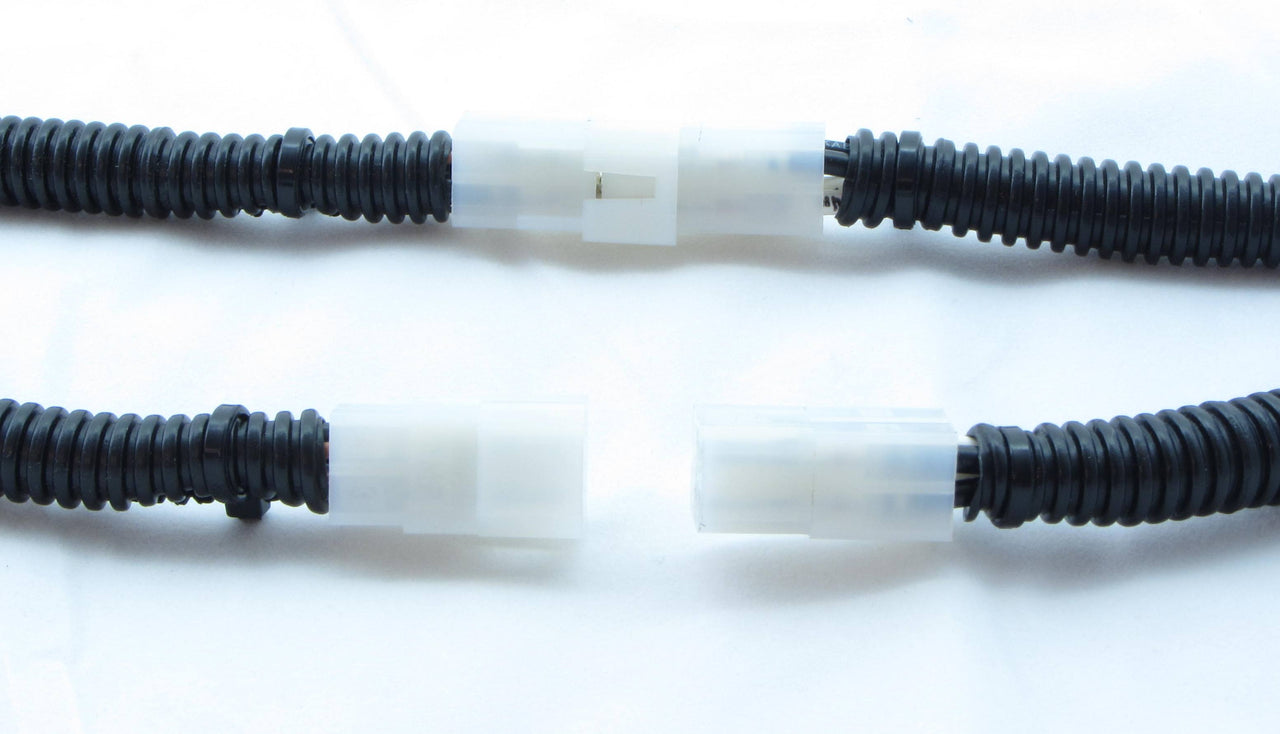

Easy to install and set up. All mounting hardware needed is included. And our step-by-step video makes it easy to install. Just mount the heater and fan module, mount the thermostat, connect them together and then plug it in. It's so easy!!

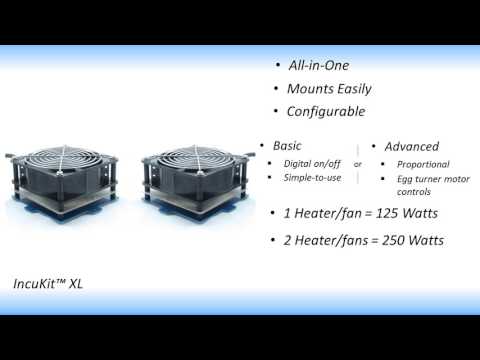

Simple to install! See this instructional video to see how simple it is to install this in your home-made incubator:
If you find that your particular incubator needs more air circulation (a common issue in odd-shaped incubators), we offer 92mm and 120mm AC fans.
There is not a predetermined size that the IncuKit will work for. This is because each incubator is built different and it is impossible to know which IncuKit will work for each design. There are several factors that will affect which IncuKit you will...
One of the simplest ways to determine what size of heating element you need in an incubator is what we call the light bulb test. To perform this test, you simply place a light bulb(s) in the incubator with the approximate wattage that you think will ...
The temperature probe on the thermostats is a thermocouple. They can be extended as long as the same gauge of wire is used. If extended this can make the calibration off a little The thermostats may then need to be re-calibrated to an accurate thermometer...

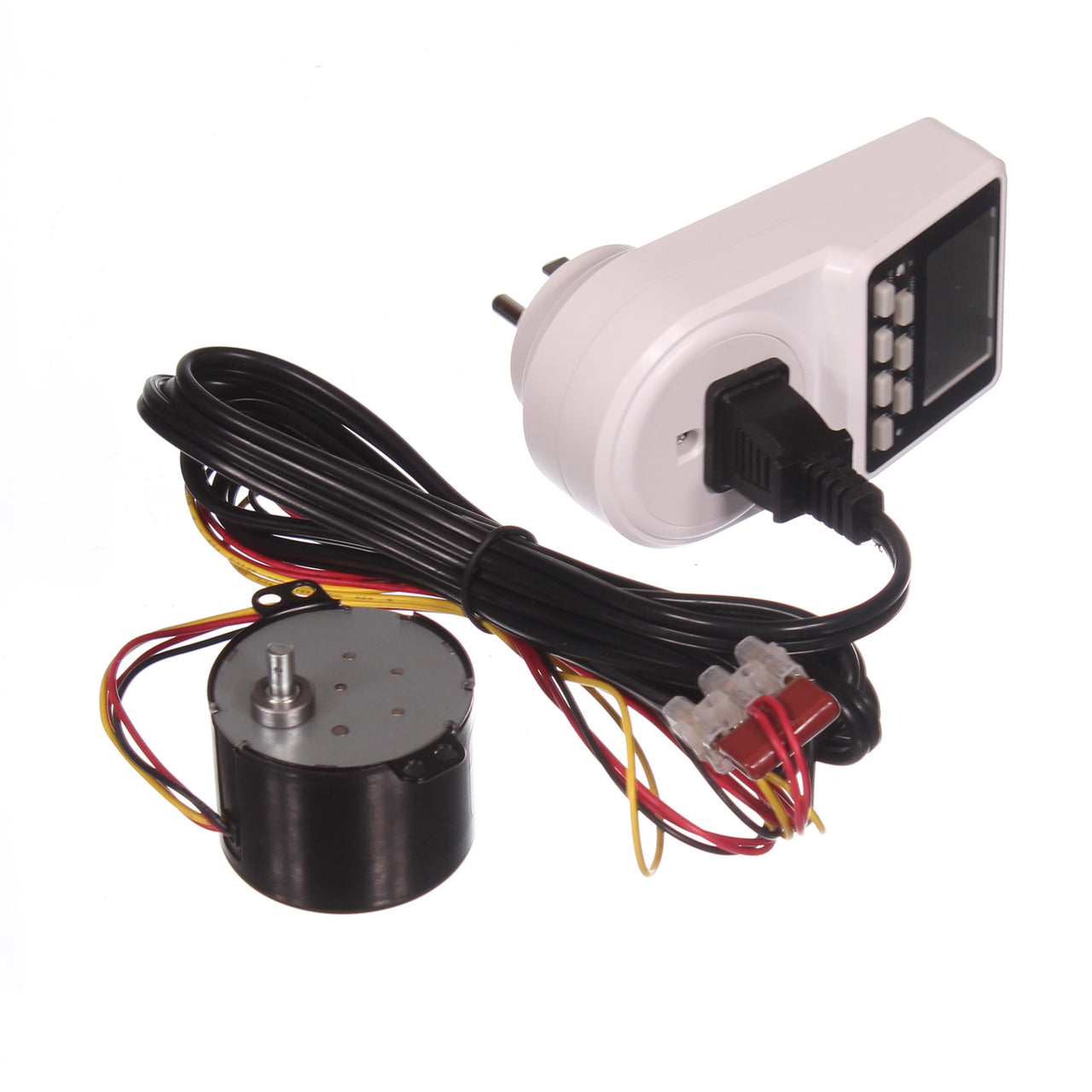

The temperature adjustment would depent on which thermostat was selected. Either thermostat can be set to a range of 60-110 degrees F. The IncuStat basic only provides power for a turner motor but does not control the motor while the IncuStat Advanced...
The IncuKit XL is designed to have the fan constatly run and there is not an option to turn off the fan. The heating element for the IncuKit XL is what is called a mica heater which puts out 125 watts of heat.
We do sell the IncuKit™ XL for Cabinet Incubators in 220V. Here is a link to the product page: https://incubatorwarehouse.com/egg-incubator-accessories/incukit-xl-220v.html
